يقوم الحساس بالكشف عن اقتراب جسم معدنى يستخدم عادة فى المصانع وفى انظمة التحكم وسير خط الانتاج للتنبيه عن وصول المنتج نقطة ما.

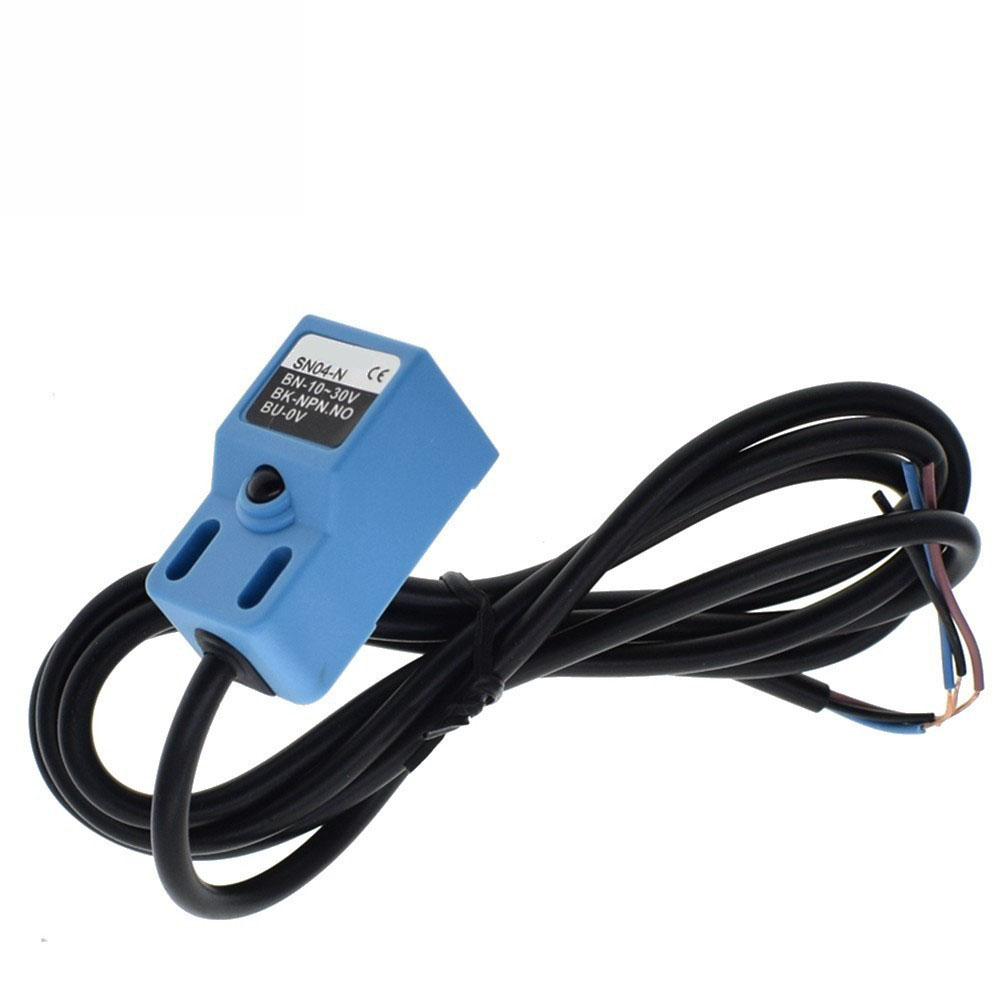

The proximity switch (also known as the non-contact travel switch) acts when it is close to metal and is widely used for the control of machine tools and other equipment.
Description
[Brand]: OMKQN
[Model]: SN04-N
[name]: corner column universal proximity switch
[shape]: 18*18*36 mm
[Detection distance]: 4 mm (mm)
[Detecting Objects]: Metal/Iron
[Working voltage]: Within 6-36VDC
[Output method]: DC three-line NPN is normally open, NPN NO
[Output current]: 300 mA (mA)
[Shell material]: plastic
[Functional use]: The proximity switch (also known as the non-contact travel switch) acts when it is close to metal and is widely used for the control of machine tools and other equipment.
[Model]: SN04-N
[name]: corner column universal proximity switch
[shape]: 18*18*36 mm
[Detection distance]: 4 mm (mm)
[Detecting Objects]: Metal/Iron
[Working voltage]: Within 6-36VDC
[Output method]: DC three-line NPN is normally open, NPN NO
[Output current]: 300 mA (mA)
[Shell material]: plastic
[Functional use]: The proximity switch (also known as the non-contact travel switch) acts when it is close to metal and is widely used for the control of machine tools and other equipment.
